n8n Add AI labels to Gmail messages
Overview
📧 n8n Add AI labels to Gmail messages
This n8n Add AI labels to Gmail messages workflow automatically labels incoming Gmail messages using AI. It retrieves message content, suggests labels like ‘Partnership’, ‘Inquiry’, and ‘Notification’, and assigns them for better organization.
🔧 Workflow Steps:
- Gmail trigger: Receive data from Gmail about new incoming messages. Set polling interval according to your needs.
- Get message content: Based on the Gmail message ID, retrieve the body content of the email and pass it to the AI chain.
- Assign labels for message (with OpenAI Chat & JSON Parser): Let the AI decide which labels best suit the content of the message. The AI categorizes the message, and the JSON Parser structures the output. Remember to edit the system prompt and JSON schema to modify label names and instructions according to your needs.
- Set label values: Extracts the assigned labels for further processing.
- Get all labels: Retrieves all existing labels from your Gmail account.
- Split out assigned labels: Splits the array of assigned labels into individual items.
- Merge corresponding labels: Combines labels retrieved from your Gmail account and those assigned by AI.
- Aggregate label IDs: Creates an array of label IDs from the merged labels.
- Add labels to message: Adds the aggregated label IDs to the desired email message in Gmail.
📌 Use Cases:
- Automatically categorize incoming emails (e.g., Partnership, Inquiry, Notification).
- Improve email organization and searchability.
- Automate email management tasks.
🧰 Required Credentials:
- Gmail OAuth2
- OpenAI API
⚙️ Notes & Enhancements:
- Adjust label names in your Gmail account, system prompt, and JSON schema according to your needs.
- Set the polling interval for the Gmail Trigger as needed.
- A complete video guide for this workflow is available on YouTube.
- Remember to add your credentials and configure nodes as covered in the video guide.

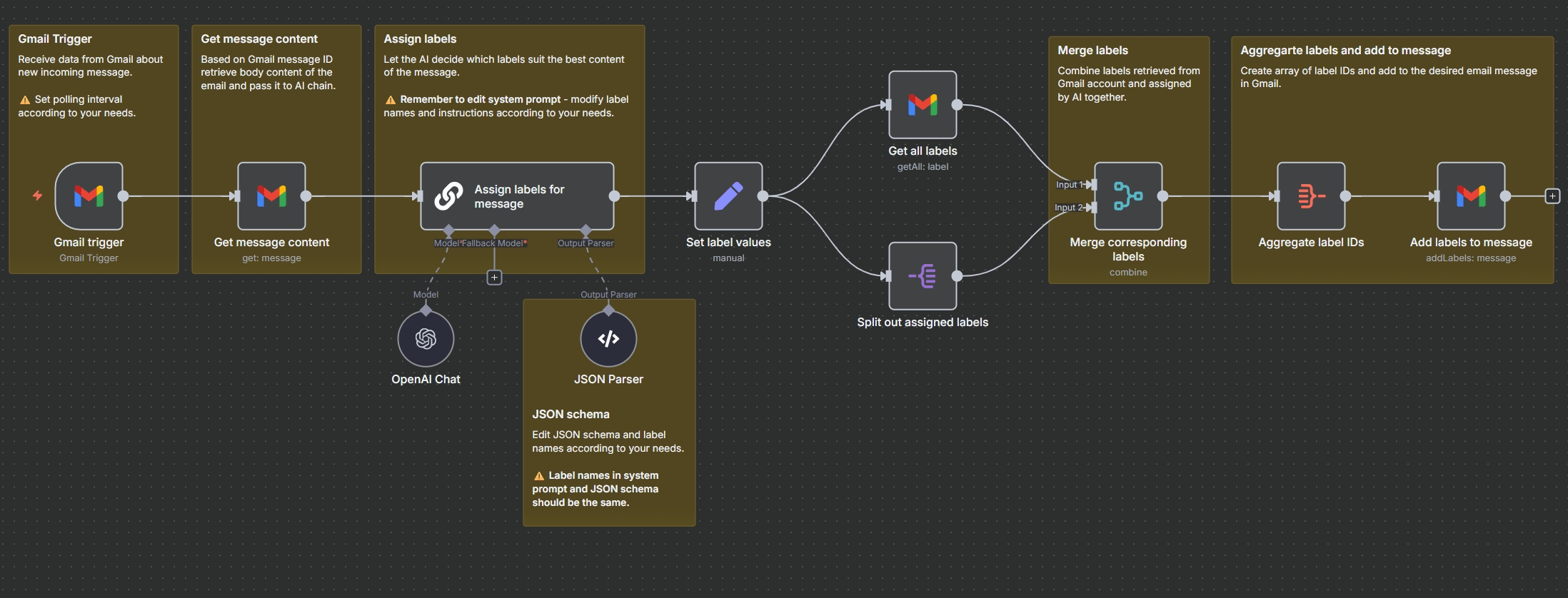

Workflow Editor Screenshot
Workflow JSON Code
{
"nodes": [
{
"id": "8141ffad-df2a-403b-a869-799c036f9733",
"name": "Gmail trigger",
"type": "n8n-nodes-base.gmailTrigger",
"position": [
-600,
580
],
"parameters": {
"simple": false,
"filters": {},
"options": {},
"pollTimes": {
"item": [
{
"mode": "everyMinute"
}
]
}
},
"credentials": {
"gmailOAuth2": {
"id": "uBcIMfsTtKjexw7I",
"name": "Gmail (workfloowstutorial@gmail.com)"
}
},
"typeVersion": 1
},
{
"id": "6d9aa398-e2de-4fd0-b939-2a12d0c9fe14",
"name": "Get message content",
"type": "n8n-nodes-base.gmail",
"position": [
-340,
580
],
"parameters": {
"simple": false,
"options": {},
"messageId": "={{ $json.id }}",
"operation": "get"
},
"credentials": {
"gmailOAuth2": {
"id": "uBcIMfsTtKjexw7I",
"name": "Gmail (workfloowstutorial@gmail.com)"
}
},
"typeVersion": 2.1
},
{
"id": "cd86bc09-8c7f-4c85-9cb3-6dbd42420672",
"name": "Set label values",
"type": "n8n-nodes-base.set",
"position": [
300,
580
],
"parameters": {
"fields": {
"values": [
{
"name": "labels",
"type": "arrayValue",
"arrayValue": "={{ $json.labels }}"
}
]
},
"options": {}
},
"typeVersion": 3.2
},
{
"id": "329435a6-51d1-416e-9aa9-5fe9a8dce74f",
"name": "Get all labels",
"type": "n8n-nodes-base.gmail",
"position": [
580,
460
],
"parameters": {
"resource": "label",
"returnAll": true
},
"credentials": {
"gmailOAuth2": {
"id": "uBcIMfsTtKjexw7I",
"name": "Gmail (workfloowstutorial@gmail.com)"
}
},
"typeVersion": 2.1
},
{
"id": "7ae2dd15-472d-4a4b-b036-f80ebd7e3c28",
"name": "Split out assigned labels",
"type": "n8n-nodes-base.splitOut",
"position": [
580,
700
],
"parameters": {
"options": {},
"fieldToSplitOut": "labels"
},
"typeVersion": 1
},
{
"id": "744c7afa-75b1-4b3b-8ccb-e2106c01f387",
"name": "Merge corresponding labels",
"type": "n8n-nodes-base.merge",
"position": [
860,
580
],
"parameters": {
"mode": "combine",
"options": {},
"mergeByFields": {
"values": [
{
"field1": "name",
"field2": "labels"
}
]
},
"outputDataFrom": "input1"
},
"typeVersion": 2.1
},
{
"id": "e47424dc-f43e-41a9-b1e5-ab3e08cbf395",
"name": "Aggregate label IDs",
"type": "n8n-nodes-base.aggregate",
"position": [
1120,
580
],
"parameters": {
"options": {},
"fieldsToAggregate": {
"fieldToAggregate": [
{
"renameField": true,
"outputFieldName": "label_ids",
"fieldToAggregate": "id"
}
]
}
},
"typeVersion": 1
},
{
"id": "22ba8297-8efc-463e-8ae0-385fd94a205f",
"name": "Add labels to message",
"type": "n8n-nodes-base.gmail",
"position": [
1340,
580
],
"parameters": {
"labelIds": "={{ $json.label_ids }}",
"messageId": "={{ $('Gmail trigger').item.json[\"id\"] }}",
"operation": "addLabels"
},
"credentials": {
"gmailOAuth2": {
"id": "uBcIMfsTtKjexw7I",
"name": "Gmail (workfloowstutorial@gmail.com)"
}
},
"typeVersion": 2.1
},
{
"id": "7ebb1aad-00ad-43fa-9e07-e5f324864a74",
"name": "Assign labels for message",
"type": "@n8n/n8n-nodes-langchain.chainLlm",
"position": [
-80,
580
],
"parameters": {
"prompt": "={{ $json.text }}",
"messages": {
"messageValues": [
{
"message": "Your task is to categorize the message according to the following labels.\n\nPartnership - email about sponsored content, cooperation etc.\nInquiry - email about products, services.\nNotification - email that doesn't require response. \n\nOne email can have more than one label. Return only label names in JSON format, nothing else. Do not make things up. "
}
]
}
},
"typeVersion": 1.3
},
{
"id": "2f82db6a-422c-4697-a629-cc782d88209d",
"name": "Sticky Note",
"type": "n8n-nodes-base.stickyNote",
"position": [
-1100,
400
],
"parameters": {
"color": 4,
"width": 420.4803040774015,
"height": 240.57943708322733,
"content": "## Add AI labels to Gmail messages\nWith this workflow you can automatically set labels for your Gmail message according to its content. \n\nIn this workflow available are 3 labels: \"Partnership\", \"Inquiry\" and \"Notification\". Feel free to adjust labels according to your needs. \n\n**Please remember to set label names both in your Gmail account and workflow.**"
},
"typeVersion": 1
},
{
"id": "4a10fb2b-aebb-4735-bbdb-7f07f1136d95",
"name": "Sticky Note1",
"type": "n8n-nodes-base.stickyNote",
"position": [
-1100,
660
],
"parameters": {
"width": 421.0932411886662,
"height": 257.42916378714597,
"content": "## ⚠️ Note\n\n1. Complete video guide for this workflow is available [on my YouTube](https://youtu.be/a8Dhj3Zh9vQ). \n2. Remember to add your credentials and configure nodes (covered in the video guide).\n3. If you like this workflow, please subscribe to [my YouTube channel](https://www.youtube.com/@workfloows) and/or [my newsletter](https://workfloows.com/).\n\n**Thank you for your support!**"
},
"typeVersion": 1
},
{
"id": "76e62351-d502-4377-9df2-fe92df00fe03",
"name": "Sticky Note2",
"type": "n8n-nodes-base.stickyNote",
"position": [
-660,
400
],
"parameters": {
"width": 238.4602598584674,
"height": 348.5873725349161,
"content": "### Gmail Trigger\nReceive data from Gmail about new incoming message. \n\n⚠️ Set polling interval according to your needs."
},
"typeVersion": 1
},
{
"id": "c10702db-211f-4638-bcf0-fbbe18251cb7",
"name": "Sticky Note4",
"type": "n8n-nodes-base.stickyNote",
"position": [
60,
780
],
"parameters": {
"width": 241.53974014153226,
"height": 319.3323098457962,
"content": "###\n\n\n\n\n\n\n\n\n\n\n### JSON schema\nEdit JSON schema and label names according to your needs.\n\n⚠️ **Label names in system prompt and JSON schema should be the same.**"
},
"typeVersion": 1
},
{
"id": "cb6e3573-3d4d-4313-a97e-86a017438399",
"name": "Sticky Note5",
"type": "n8n-nodes-base.stickyNote",
"position": [
800,
420
],
"parameters": {
"width": 226.14233872620645,
"height": 347.0476323933831,
"content": "### Merge labels\nCombine labels retrieved from Gmail account and assigned by AI together."
},
"typeVersion": 1
},
{
"id": "8cfb4341-98e6-4944-b26c-15e39184f468",
"name": "Sticky Note6",
"type": "n8n-nodes-base.stickyNote",
"position": [
1060,
420
],
"parameters": {
"width": 452.48413953150185,
"height": 347.0476323933831,
"content": "### Aggregarte labels and add to message\nCreate array of label IDs and add to the desired email message in Gmail."
},
"typeVersion": 1
},
{
"id": "bb9766e8-0b72-47f8-9a8e-0b291609e814",
"name": "Sticky Note7",
"type": "n8n-nodes-base.stickyNote",
"position": [
-400,
400
],
"parameters": {
"width": 238.4602598584674,
"height": 348.5873725349161,
"content": "### Get message content\nBased on Gmail message ID retrieve body content of the email and pass it to AI chain."
},
"typeVersion": 1
},
{
"id": "48630cbd-8336-4577-928e-37341f09ef9b",
"name": "Sticky Note8",
"type": "n8n-nodes-base.stickyNote",
"position": [
-140,
400
],
"parameters": {
"width": 378.57661273793565,
"height": 348.5873725349161,
"content": "### Assign labels\nLet the AI decide which labels suit the best content of the message.\n\n⚠️ **Remember to edit system prompt** - modify label names and instructions according to your needs."
},
"typeVersion": 1
},
{
"id": "60a9d75e-1564-4b1d-b3f2-acc2e3bf2411",
"name": "JSON Parser",
"type": "@n8n/n8n-nodes-langchain.outputParserStructured",
"position": [
140,
800
],
"parameters": {
"jsonSchema": "{\n \"type\": \"object\",\n \"properties\": {\n \"labels\": {\n \"type\": \"array\",\n \"items\": {\n \"type\": \"string\",\n \"enum\": [\"Inquiry\", \"Partnership\", \"Notification\"]\n }\n }\n },\n \"required\": [\"labels\"]\n}\n"
},
"typeVersion": 1
},
{
"id": "2bdf3fed-8a7f-411a-bad4-266bfea5cede",
"name": "OpenAI Chat",
"type": "@n8n/n8n-nodes-langchain.lmChatOpenAi",
"position": [
-120,
800
],
"parameters": {
"model": "gpt-4-turbo-preview",
"options": {
"temperature": 0,
"responseFormat": "json_object"
}
},
"credentials": {
"openAiApi": {
"id": "jazew1WAaSRrjcHp",
"name": "OpenAI (workfloows@gmail.com)"
}
},
"typeVersion": 1
}
],
"active": false,
"pinData": {},
"settings": {
"executionOrder": "v1"
},
"connections": {
"JSON Parser": {
"ai_outputParser": [
[
{
"node": "Assign labels for message",
"type": "ai_outputParser",
"index": 0
}
]
]
},
"OpenAI Chat": {
"ai_languageModel": [
[
{
"node": "Assign labels for message",
"type": "ai_languageModel",
"index": 0
}
]
]
},
"Gmail trigger": {
"main": [
[
{
"node": "Get message content",
"type": "main",
"index": 0
}
]
]
},
"Get all labels": {
"main": [
[
{
"node": "Merge corresponding labels",
"type": "main",
"index": 0
}
]
]
},
"Set label values": {
"main": [
[
{
"node": "Get all labels",
"type": "main",
"index": 0
},
{
"node": "Split out assigned labels",
"type": "main",
"index": 0
}
]
]
},
"Aggregate label IDs": {
"main": [
[
{
"node": "Add labels to message",
"type": "main",
"index": 0
}
]
]
},
"Get message content": {
"main": [
[
{
"node": "Assign labels for message",
"type": "main",
"index": 0
}
]
]
},
"Assign labels for message": {
"main": [
[
{
"node": "Set label values",
"type": "main",
"index": 0
}
]
]
},
"Split out assigned labels": {
"main": [
[
{
"node": "Merge corresponding labels",
"type": "main",
"index": 1
}
]
]
},
"Merge corresponding labels": {
"main": [
[
{
"node": "Aggregate label IDs",
"type": "main",
"index": 0
}
]
]
}
}
}
